Cross-Server Setup - GashiStudios

Share rankings and matchmaking queue across your entire network.

How It Works

CobbleRanked uses a lobby/battle server architecture:

Lobby Servers - Players join the matchmaking queue from any server in your network
Battle Server - A dedicated server where all ranked battles take place
Redis - Synchronizes the queue across all servers in real-time
Database - Stores rankings, stats, and match history (shared by all servers)

When two players are matched, they are transferred to the battle server via Velocity, complete their battle, and return to their original servers.

Important: Pokemon Data Sync

CobbleRanked does NOT sync Cobblemon Pokemon data between servers. To ensure players have access to the same Pokemon across your network, configure Cobblemon’s built-in MongoDB storage on all servers:
# config/cobblemon/main.conf
storageFormat = "mongodb"
mongoDBConnectionString = "mongodb://your-mongodb-host:27017"
mongoDBDatabaseName = "cobblemon"
All servers must point to the same MongoDB instance so Pokemon data is shared across your network.

See Cobblemon Config Wiki for more details.

CobbleRanked only syncs: Rankings, Match History, Queue State, Season Data

Requirements

Component	Version	Purpose
MySQL	8.0+	Shared database (Option 1)
MongoDB	6.0+	Shared database (Option 2)
Redis	6.0+	Queue synchronization
Velocity	3.4.0+	Proxy server
FabricProxy-Lite	Latest	Required for player transfers

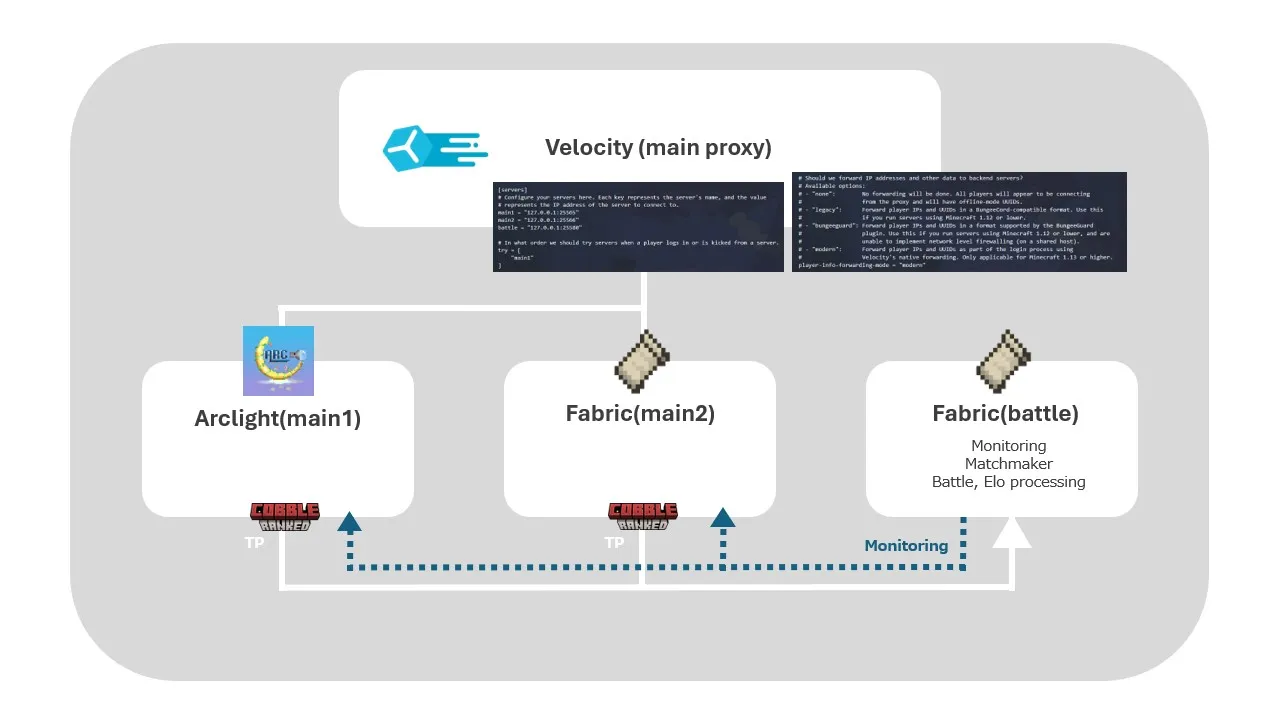

Architecture

Cross-Server Architecture

Setup Steps

1. Install Redis

Redis handles real-time queue synchronization between servers.

Linux (Ubuntu/Debian):

sudo apt install redis-server
sudo systemctl start redis-server
sudo systemctl enable redis-server

Docker:

docker run -d -p 6379:6379 --name redis redis:latest

Verify Installation:

redis-cli PING
# Should return: PONG

2. Configure Database

All servers must connect to the same database. See Database Configuration for detailed MySQL/MongoDB setup.

3. Configure Battle Server

The battle server is where all ranked battles take place. Only one server should be configured as the battle server.

# config.yaml on Battle Server
crossServer:
  enabled: true
  serverId: "battle"
  battleServer: ""  # Empty string = this IS the battle server

  # Allow players on battle server to join queue directly (NOT RECOMMENDED)
  # Default: false - battle servers should only handle matched battles
  allowQueueOnBattleServer: false

  redis:
    host: "your-redis-host"
    port: 6379
    password: ""
    database: 0
    useSsl: false

  timing:
    matchFoundDelaySeconds: 5
    battleStartDelaySeconds: 10
    playerArrivalTimeoutSeconds: 30

database:
  type: "mysql"  # or "mongodb"

  mysql:
    host: "your-database-host"
    port: 3306
    database: "cobbleranked"
    username: "cobbleranked"
    password: "your_password"
    pool:
      maxSize: 10
      minIdle: 2

4. Configure Lobby Servers

Lobby servers handle queue joining. Players can join the queue from any lobby server.

# config.yaml on Lobby Server
crossServer:
  enabled: true
  serverId: "lobby1"      # Must be unique for each lobby!
  battleServer: "battle"  # Name of the battle server in Velocity

  redis:
    host: "your-redis-host"  # Same as battle server
    port: 6379
    password: ""

database:
  type: "mysql"  # Same as battle server

  mysql:
    host: "your-database-host"  # Same as battle server
    port: 3306
    database: "cobbleranked"
    username: "cobbleranked"
    password: "your_password"

5. Configure Velocity

Add all servers to your velocity.toml:

[servers]
lobby1 = "127.0.0.1:25566"
lobby2 = "127.0.0.1:25567"
battle = "127.0.0.1:25568"

try = ["lobby1"]

Note: The server names in Velocity must match the serverId and battleServer values in your CobbleRanked configs.

6. Configure FabricProxy-Lite

Install FabricProxy-Lite on all Fabric servers to enable player transfers via the BungeeCord plugin messaging channel.

Requirements:

FabricProxy-Lite on all Fabric servers
bungeecord: true in Velocity’s velocity.toml (under [advanced])

Server ID Reference

Each server needs a unique serverId. The battleServer field should be empty on the battle server itself, and set to the battle server’s name on lobby servers.

Server	serverId	battleServer
Battle Server	`battle`	`""` (empty)
Lobby 1	`lobby1`	`"battle"`
Lobby 2	`lobby2`	`"battle"`

Player Flow

Player opens /ranked on any lobby server
Player joins the matchmaking queue
Queue state syncs to all servers via Redis
Match found → Both players transfer to battle server
Battle completes → Results saved to shared database
Players return to their original lobby servers
